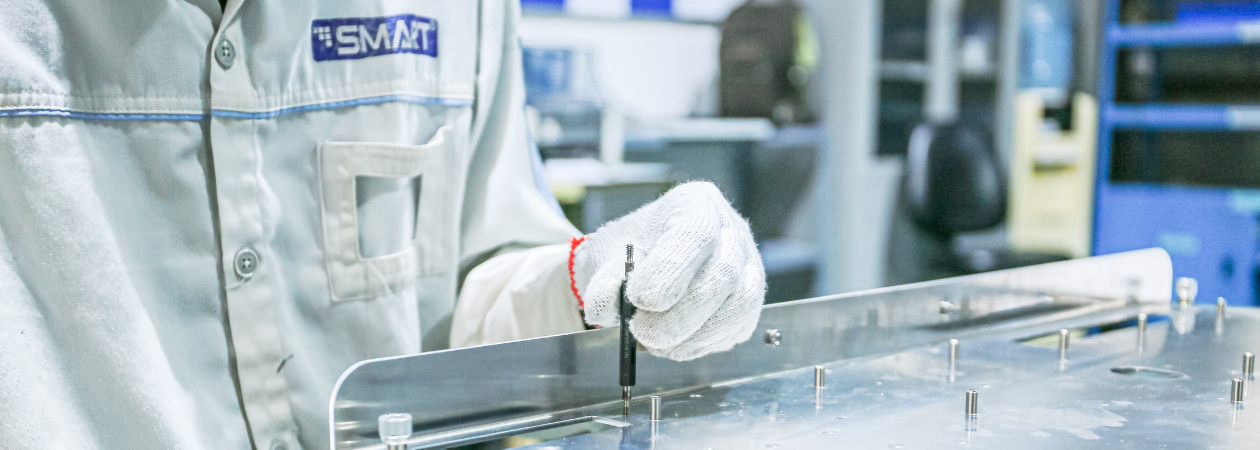

Mastering Precision Sheet Metal Tolerances

In this comprehensive guide, we will explore the intricacies of precision sheet metal tolerances, examining the nuances of raw materials, manufacturing processes, and tolerance stack-ups. Additionally, we will provide practical insights and expert tips to help you excel in your fabrication endeavors.

What’s on this page

• Raw Materials and Variations
• Manufacturing Processes and Equipment Limitations
• Considerations for Tolerances in Formed Features
• Partnering with the Experts

Raw Materials and Variations

One critical aspect that sets sheet metal fabrication apart is the use of sheet stock instead of solid materials. Sheet stock is typically available in various grades and thicknesses, and it is crucial to consider the variations that can occur within these specifications.

When it comes to sheet metal thickness, variations can be observed even within a specific gauge. For example, a 16-gauge cold-rolled steel sheet is typically specified as 0.057" thick. However, due to manufacturing processes and material characteristics, the actual thickness of the sheet may measure slightly less, around 0.056". These minute variations may seem insignificant, but they can have a significant impact on tolerances, potentially consuming a considerable portion of the allowable tolerance range even before the fabrication process begins.

The variations in sheet metal thickness can stem from several factors. Manufacturing processes such as rolling, annealing, and leveling can influence the thickness consistency of the sheet. Material characteristics, such as the composition and properties of the metal, can also contribute to variations. Additionally, factors like storage conditions, handling, and transportation can introduce deviations in sheet metal thickness.
To address the challenges posed by variations in raw materials, it is crucial to establish clear communication and specifications with suppliers. Working closely with reputable suppliers who understand the specific tolerances required for your project can help ensure consistent material quality. Regular inspections and measurements of incoming sheet stock can also help identify any variations and allow for adjustments in the fabrication process.

Furthermore, it is important to consider the impact of material variations on the overall design and fabrication process. Designers and engineers should account for these variations in their tolerance allocations and ensure that the design can accommodate the potential deviations in sheet metal thickness. Understanding and accounting for these variations, fabricators can optimize their processes and achieve more accurate and consistent results.

Manufacturing Processes and Equipment Limitations

The choice of manufacturing process in precision sheet metal fabrication is a crucial factor that directly impacts the achievable tolerances. Different processes offer varying levels of precision, and understanding their limitations is essential for designing parts with the desired tolerances.

Equipment such as punch presses and laser cutting machines are widely used in precision sheet metal fabrication due to their ability to produce accurate and intricate features. These machines can typically hold tolerances as tight as +/- 0.002" for features located on the same surface. This level of precision allows for the fabrication of parts with high accuracy and repeatability.

Punch presses utilize specially designed tooling to punch or stamp features into the sheet metal. The tooling and press mechanisms are engineered to provide precise control over the punching operation, resulting in consistent feature dimensions. Laser cutting machines, on the other hand, use focused laser beams to precisely cut through the sheet metal, offering excellent control and minimal material distortion.

However, when incorporating formed features, such as flanges, into the design, it is important to consider the limitations of the equipment used. Forming processes, such as bending or folding, introduce additional complexities and can impact the achievable tolerances.

Bending operations, for instance, subject the material to forces that cause thinning at the apex of the bend. This thinning effect, known as the bend allowance, can result in variations in the dimensions and angles of the formed feature. To accommodate these limitations, looser tolerances are typically required for formed features compared to features produced by cutting or punching operations.

The specific limitations of forming processes depend on factors such as the material type and thickness, the bending method employed, and the capabilities of the equipment. Understanding these limitations allows designers and fabricators to make informed decisions when establishing tolerances for formed features.

Furthermore, it is important to consider the cumulative effect of tolerance stack-up when multiple formed features are integrated into a part. Tolerance stack-up refers to the accumulation of individual tolerances throughout the assembly process, which can result in dimensional variations that exceed the desired tolerances. Proper analysis and adjustment of cumulative tolerances are necessary to ensure that the final part meets the required specifications.

To overcome the limitations of manufacturing processes and equipment, fabricators often employ techniques such as iterative prototyping, process optimization, and inspection methodologies to refine and improve the fabrication process. Continuously evaluating and fine-tuning the processes, fabricators can achieve tighter tolerances and enhance the overall quality of the fabricated parts.

Considerations for Tolerances in Formed Features

Forming features in precision sheet metal fabrication, such as flanges, introduce unique challenges when it comes to tolerances. The bending process subjects the material to forces that can cause thinning or stretching at the apex of the bend. These deformations must be taken into account when determining the tolerances for formed features.

During the bending operation, the material undergoes plastic deformation, resulting in changes to its geometry and dimensions. The amount of thinning or stretching at the bend depends on factors such as the material type, thickness, bend angle, bend radius, and the characteristics of the bending equipment.

To accommodate these deformations, a specific tolerance known as the "bend to edge" tolerance is applied. This tolerance accounts for the potential variations in the dimensions of the formed feature relative to its distance from the bend line or edge. Typically, a tolerance of +/- 0.010" bend to edge is considered standard in precision sheet metal fabrication.

The +/- 0.010" tolerance allows for the acceptable range of dimensional variation due to the bending process. It ensures that the formed feature remains within the specified tolerances, even considering the potential thinning or stretching effects caused by bending.

However, it is important to note that the bend to edge tolerance is additive to the overall tolerances of the part. As more formed features are integrated into a part, each with its own bend to edge tolerance, the cumulative effect of tolerance stack-up becomes a critical concern.

Tolerance stack-up refers to the accumulation of individual tolerances throughout the assembly process, which can result in dimensional variations that exceed the desired tolerances. When multiple formed features are present in a part, the cumulative effect of their individual tolerances can significantly impact the overall dimensions and fit of the final assembly.

To address tolerance stack-up, appropriate adjustments to the cumulative tolerances must be made. This can involve revisiting the design, reassessing the manufacturing processes, and refining the tolerance allocations for each formed feature. By carefully analyzing and managing the tolerance stack-up, fabricators can ensure that the final assembly meets the required specifications.

In some cases, alternative strategies may be employed to mitigate tolerance stack-up issues. For example, the use of self-clinching fasteners or floating fasteners, such as PEM® floating fasteners, can provide flexibility in assembly and allow for slight adjustments in alignment and positioning without affecting the overall tolerances of the part.

Partnering with the Experts

When it comes to manufacturing precision sheet metal parts, it is crucial to entrust your projects to a team of experts who have the knowledge and experience to deliver exceptional results. At Smart Vietnam, we pride ourselves on being a leading provider of precision sheet metal fabrication services, with a proficient team dedicated to meeting the highest standards of quality and precision.

Our team of experts possesses an in-depth understanding of tolerances and the intricacies of precision sheet metal fabrication. We have honed our skills through years of hands-on experience and a commitment to staying at the forefront of industry advancements. This expertise enables us to navigate the challenges posed by variations in raw materials, equipment limitations, and tolerance stack-up, ensuring flawless execution of your projects.

Whether you require intricate components with tight tolerances or complex assemblies that demand meticulous attention to detail, our team is equipped with the technical expertise and state-of-the-art equipment to meet your specific requirements. From precision cutting with laser technology to precision bending and forming operations, we leverage the latest advancements in manufacturing processes to deliver superior results.

We understand that every project is unique, with its own set of design specifications, tolerances, and production requirements. Our team works closely with you to fully comprehend your project goals and challenges, providing valuable insights and collaborating with you to optimize designs for manufacturability. By leveraging our expertise, we can recommend design modifications that enhance the efficiency and precision of the fabrication process, ultimately saving you time and costs.

At Smart Vietnam, we prioritize quality at every stage of the manufacturing process. Our quality control measures include rigorous inspections and comprehensive testing to ensure that each part or assembly meets the highest standards of accuracy and functionality. We are committed to delivering excellence in every project we undertake.

Partnering with us means embarking on a fruitful collaboration that leverages the expertise of our team, the precision of our manufacturing processes, and the commitment to delivering superior results. We are dedicated to exceeding your expectations, whether you require small-scale production runs or large-volume manufacturing.

Contact us today to discuss your precision sheet metal fabrication needs and request a quote. Our team is ready to assist you in bringing your projects to life with unrivaled quality and precision. Experience the difference of partnering with the experts at Smart Vietnam.
